Kasco Marine’s 5.3 JF Series Decorative Floating Fountain- 3-phase, 5 HP Fountain

Kasco Marine’s  5.3JF (3 Phase), 5 hp Floating Decorative Fountain or Decorative Fountain Aerator works great for larger ponds or when multiple spray patterns are desired.

The Kasco 5.3JF Floating Aerating Fountains are unique for their size, in that they come standard with 5 interchangeable nozzles and can be operated without a nozzle to give you 6 FOUNTAIN PATTERNS FOR THE PRICE OF ONE! The 6 fountain patterns range from 25′ in height to nearly 50′ in diameter. With six multiple fountain patterns, you have the freedom to adjust the aerating fountain to fit your pond, weather conditions, and personal taste.

The 5.3JF Floating Fountains do a great job at incorporating oxygen into ponds and improving overall aeration. The 5.3JF is available in 208/240V, 3-phase 60Hz models.

The 5.3 JF floating fountain comes fully supplied with a float kit, power cord (lengths available up to 500 ft), and an all-inclusive GFI-protected 3-phase control panel (model CF-3235).  Included in this UL-508A, non-metallic 4x/3r panel is a true, 3-phase rated personnel protection GFI  with a 5mA trip level. Also included is a motor starter with adjustable overload, lightning/surge protection, two 24-hour time clocks (one for the unit and one for lights), and a Hand-Off-Auto switch. Other features are an angled field wiring terminal block for easy installation, input terminals for field-installed interlock, and startup instructions with wiring diagram on the door. A licensed electrician should install this control panel.

5 Fountain Patterns for the Price of One!

Standard Pattern Dimensions (H x W) (FT)

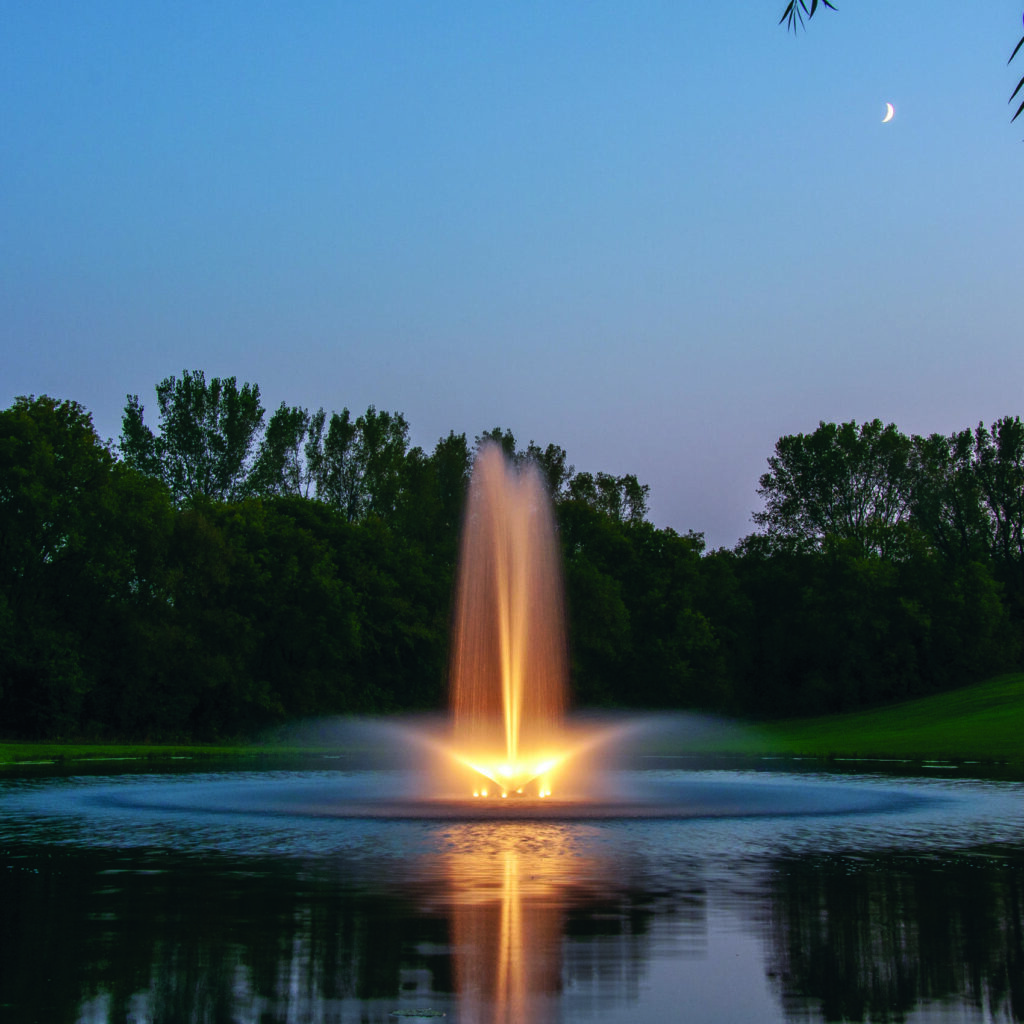

Linden	Birch	Balsam	Spruce	Redwood
24.5′ H x 46′ W	24′ H x 14′ W	18′ H x 34′ W	34′ H x 12′ W	32′ H x 6′ W

The 5.3JF is available with an extremely efficient 208/240V 3-phase, 60Hz motor.
