Standard Pattern Dimensions (H x W) (FT)

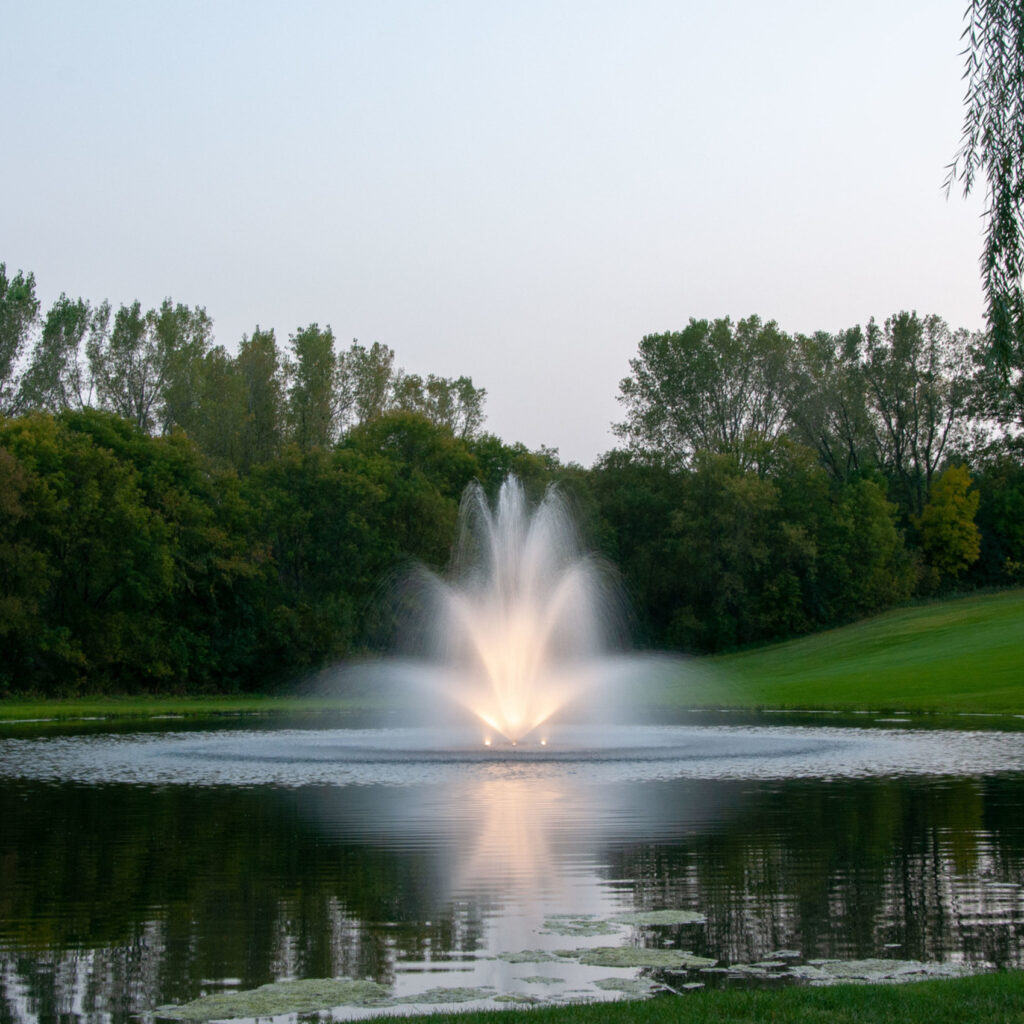

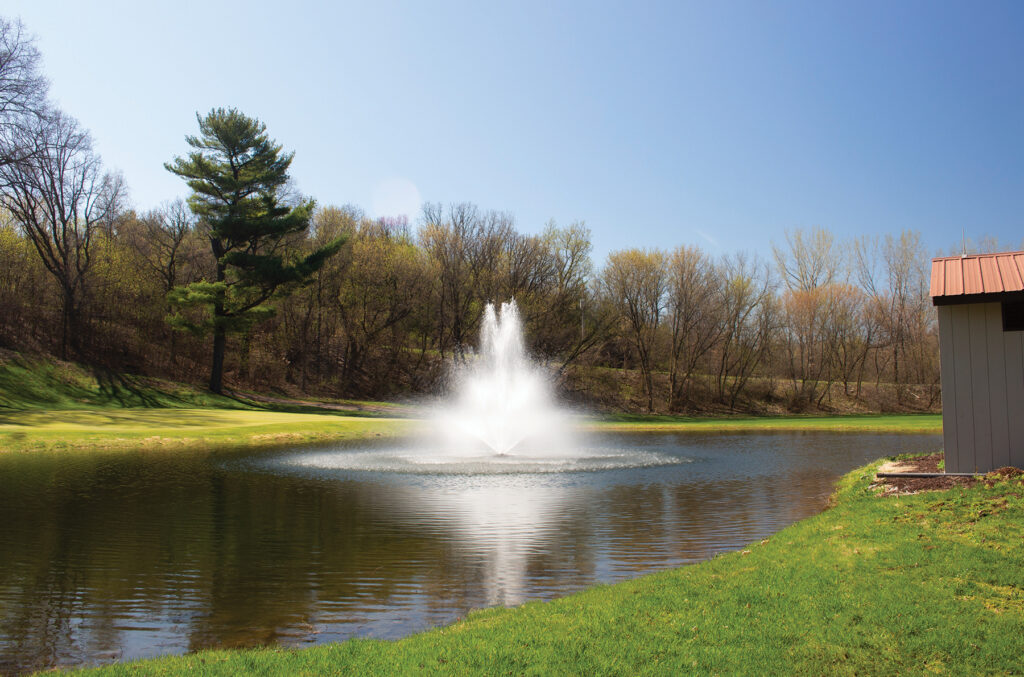

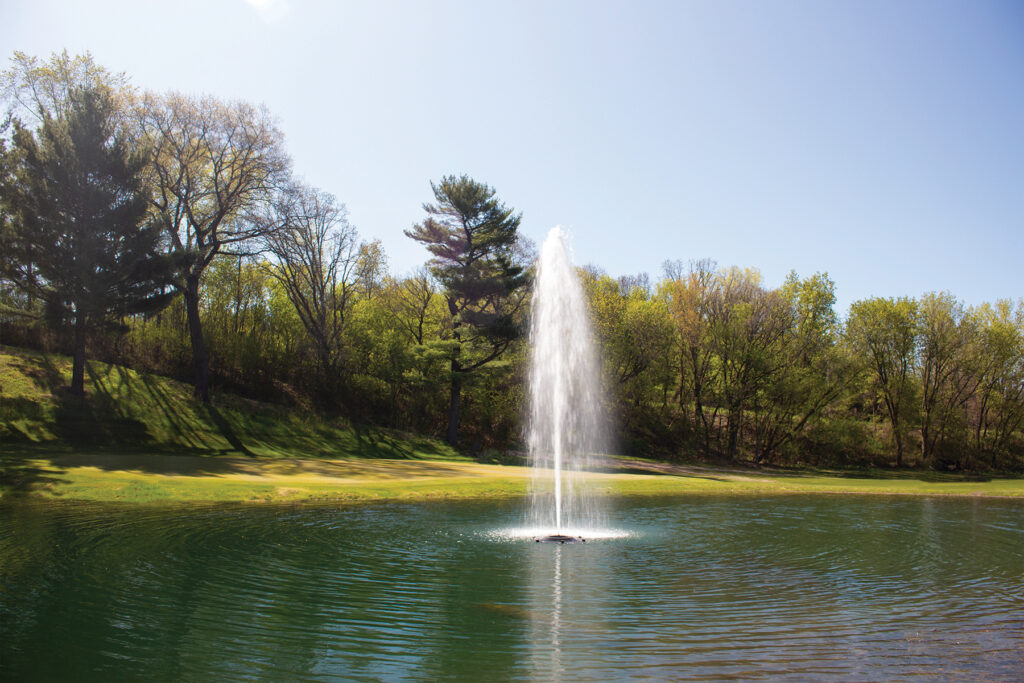

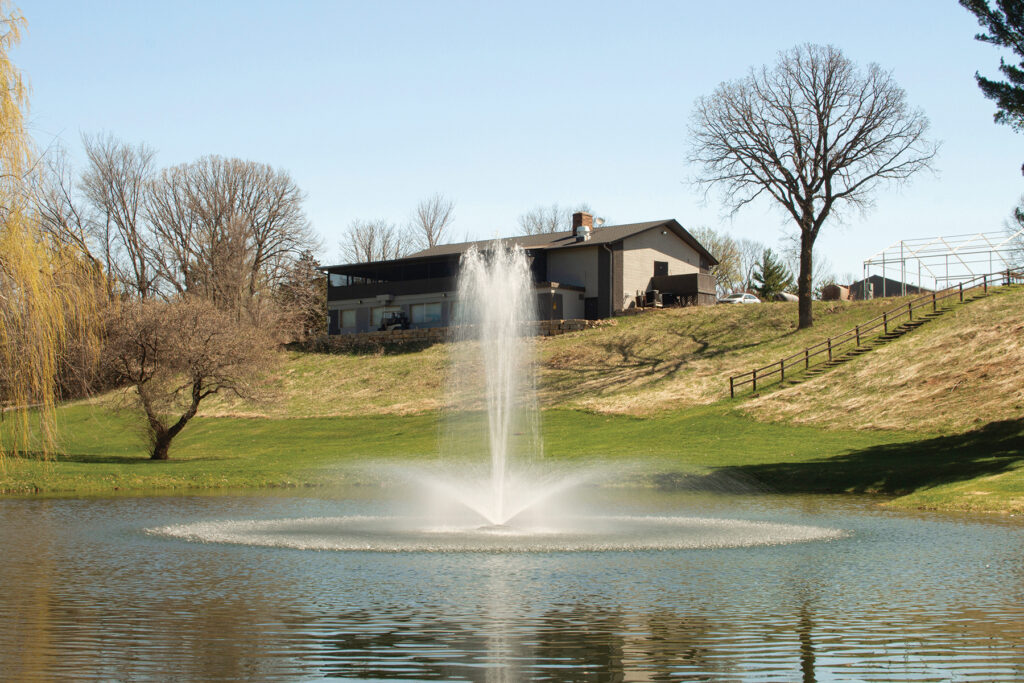

Linden	Birch	Balsam	Spruce	Redwood
15.5′ H x 38′ W	11′ H x 10′ W	14′ H x 32′ W	21′ H x 10′ W	22′ H x 6′ W

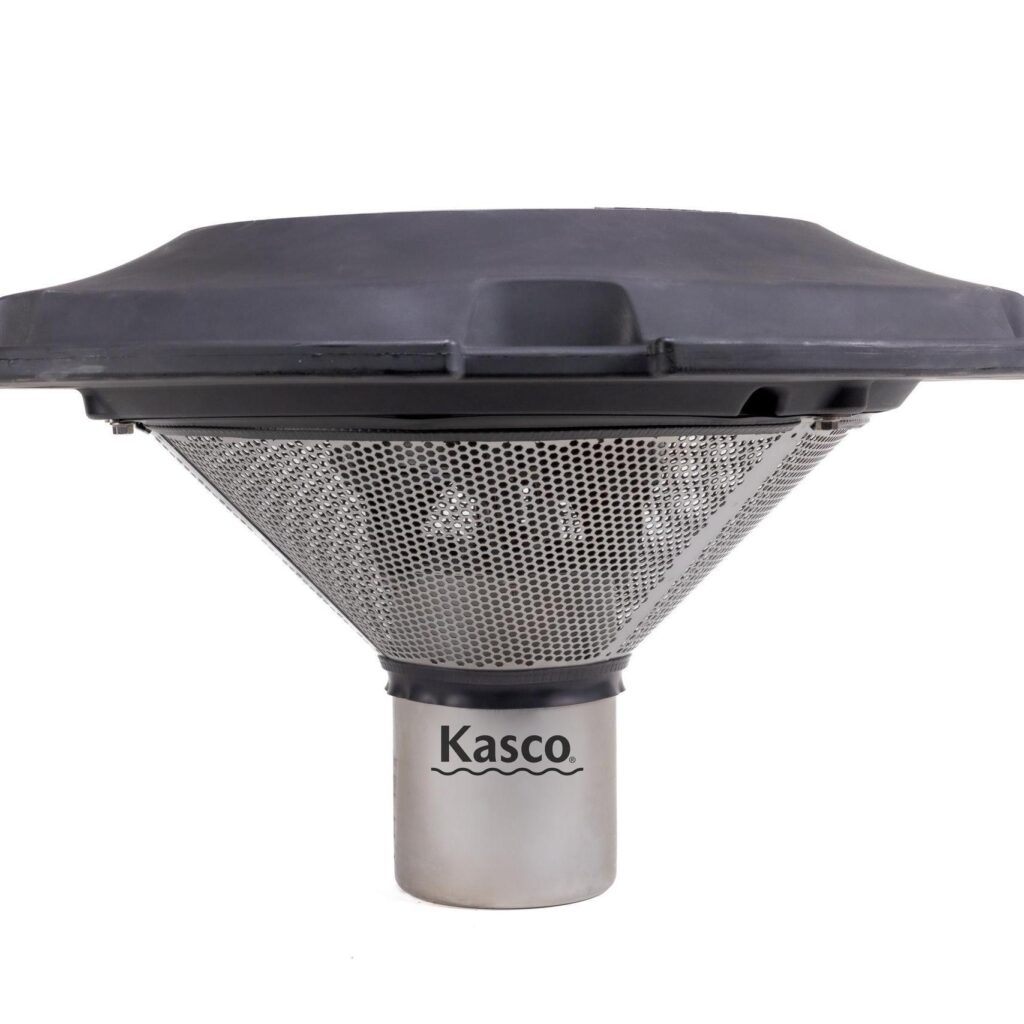

The 8400 JF fountain is available with an incredibly efficient 208/240 V, 60 Hz motor

The 8400JF, single-phase unit comes with the fountain, float kit, power cord (length available up to 500 ft), and a state-of-the-art GFCB-protected control panel, model C-85.     The panel includes a timer for the fountain, a timer for the optional light kit, Class A Human Rated GFCI protection, hard wire terminal block, surge protection, all in a thermoplastic NEMA 3r/4x rated enclosure. Kasco recommends a licensed electrician to install the C-85 control and fountain hookup.

Also included is a motor starter with adjustable overload, lightning/surge protection, two 24-hour time clocks (one for the unit and one for lights), and a Hand-Off-Auto switch. Other features are an angled field wiring terminal block for easy installation, input terminals for field-installed interlock, and startup instructions with wiring diagram on the door. A licensed electrician should install the control panel.
